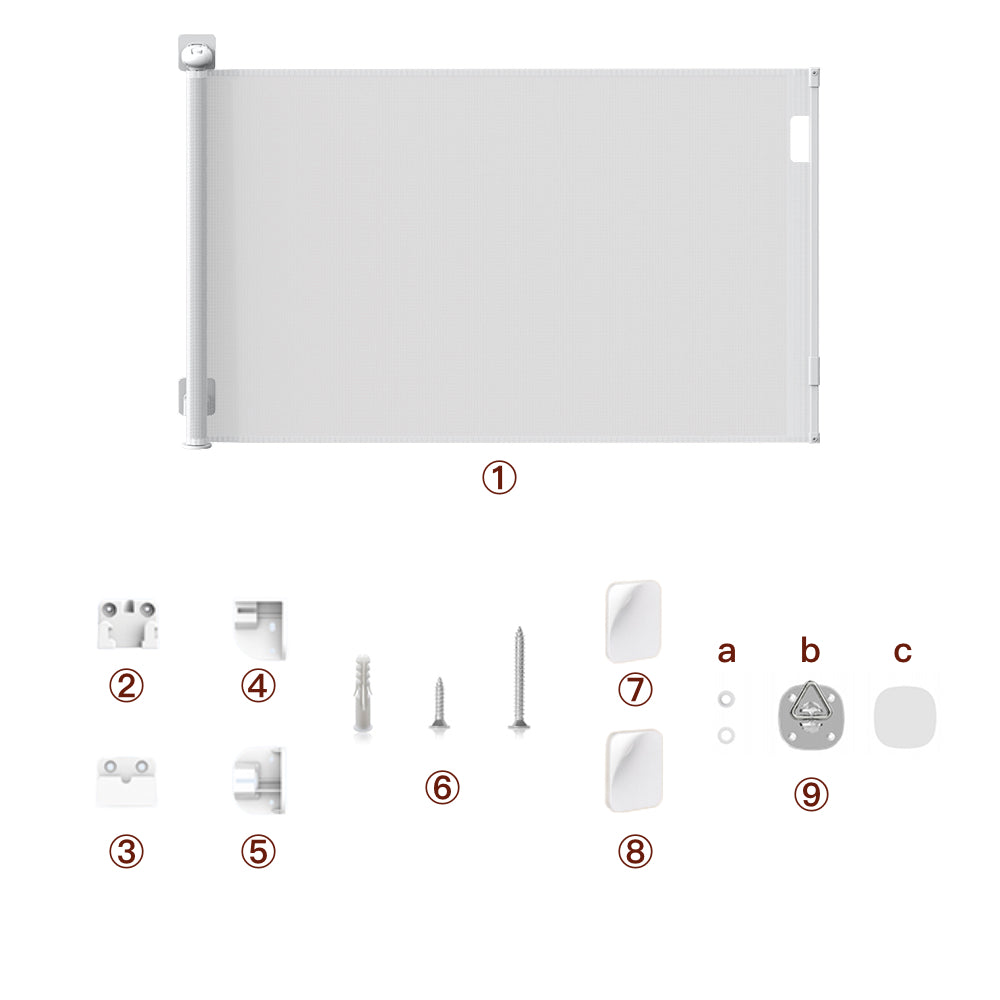

CHECKLIST OF ADJUSTABLE SAFETY BARRIER
Thoroughly review the legend on the left. We will use the legend in further steps of this instruction.
| Description | Qty | |
|---|---|---|
| ① | Mesh Safety Barrier | 1 |
| ② | Upper Left Bracket | 1 |
| ③ | Lower Left Bracket | 1 |
| ④ | Upper Right Bracket | 1 |
| ⑤ | Lower Right Bracket | 1 |
| ⑥ | Hardware Pack (screws, etc.) | 1 |
| ⑦ | Adhesive Strip A | 4 |
| ⑧ | Adhesive Strip B | 4 |
| ⑨ | Set of Bottom Mesh Fixers | 1 |
Ready, Set, Play!
Pick your install style—drill-in for textured walls (paint, plaster) or go drill-free with adhesives on slick surfaces (glass, tile, metal, polished wood).
Drill-Free Adhesive Installation
Step 1

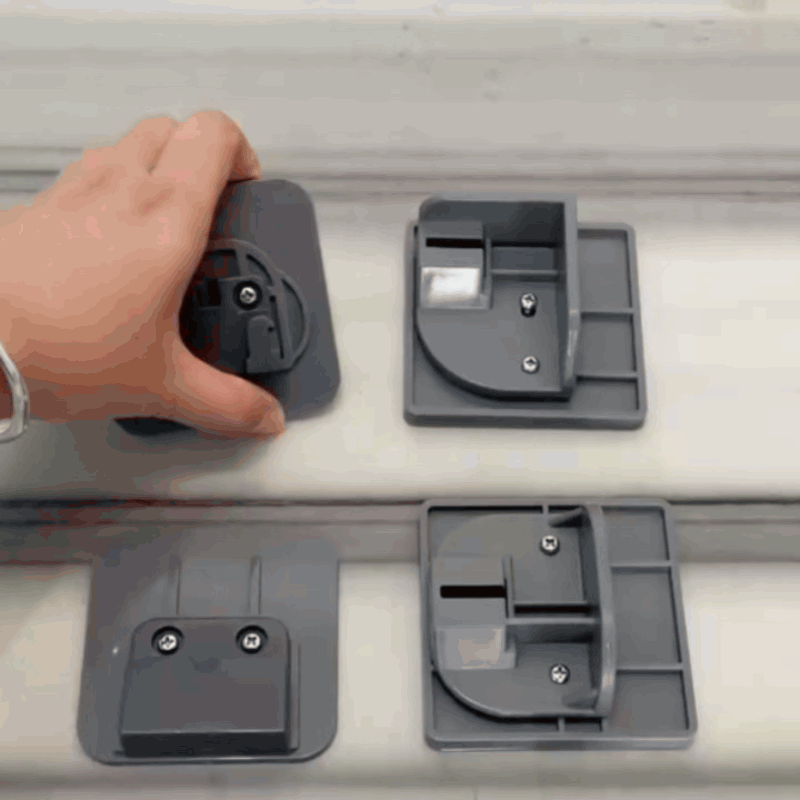

Wipe the wall until it’s spotless—no dust, grease, or dampness. Choose strip ⑦ or ⑧ and stick them to the back of each bracket.
Step 2

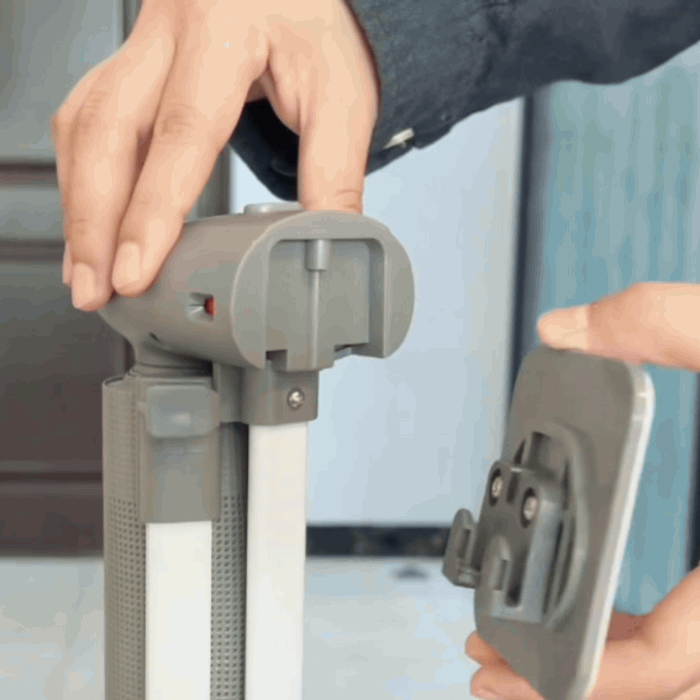

Snap the ➁ and ➂ into the matching top/bottom slots on the ①. Support the ③ by hand, peel off the strip’s backing, then press the barrier vertically onto your wall. (Slide the ③ up/down to dodge corners or obstructions.)
Step 3

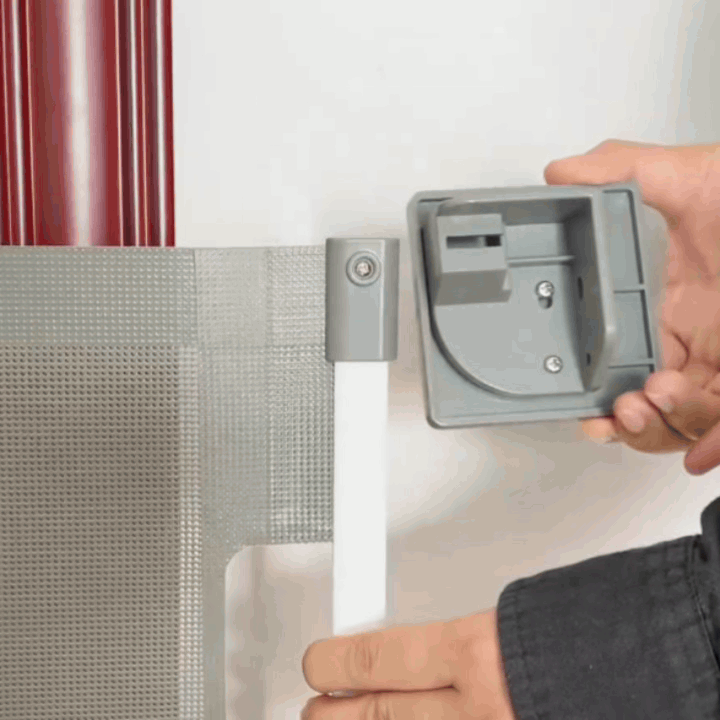

Unroll the barrier ①, snap on the ④ and ⑤, stretch the barrier ① straight, then press brackets ④ & ⑤ firmly against the wall.
Step 4

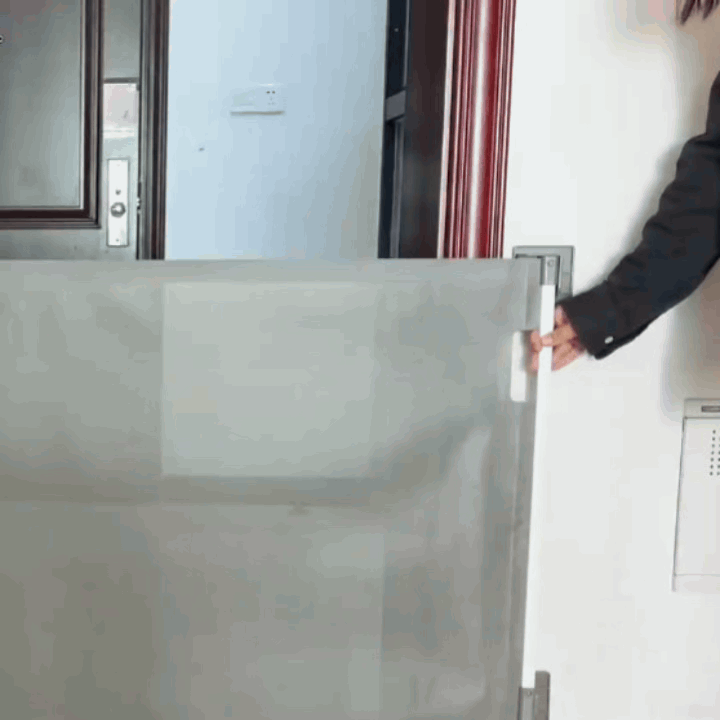

For maximum stick power, remove the ①, let your adhesives sit undisturbed for 24 hours, then snap the ① onto all four brackets. Voila—your space is now safely gated!
Drill-in Installation Steps
Step 1

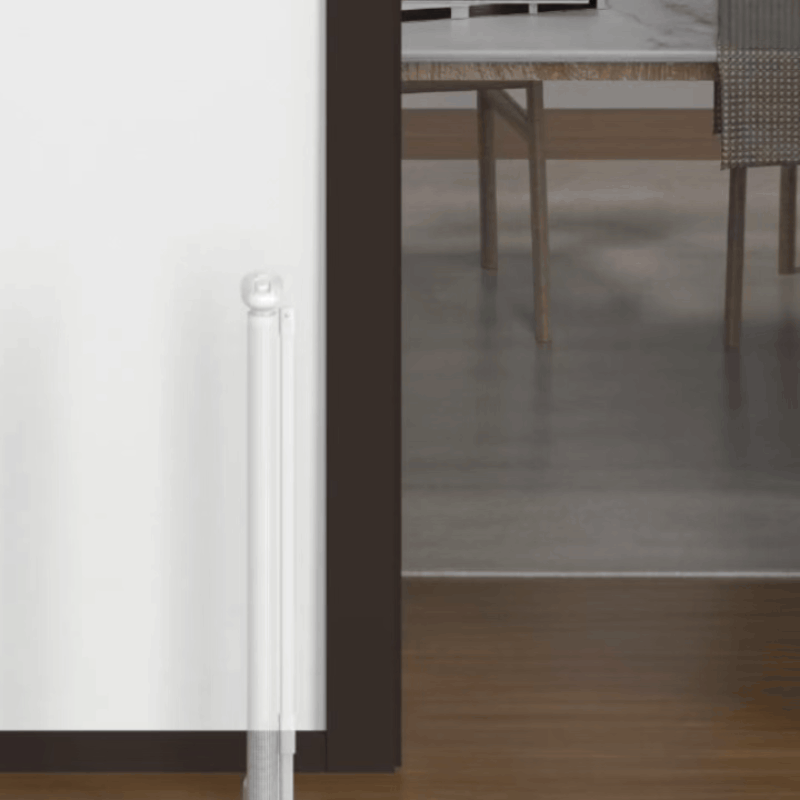

Clip ② to the top groove of ①, and bracket ③ to the bottom. Peel the film off ② & ③, press the ① squarely on the left wall. (Tip: slide ③ up or down to dodge any corner obstacles.)
Step 2

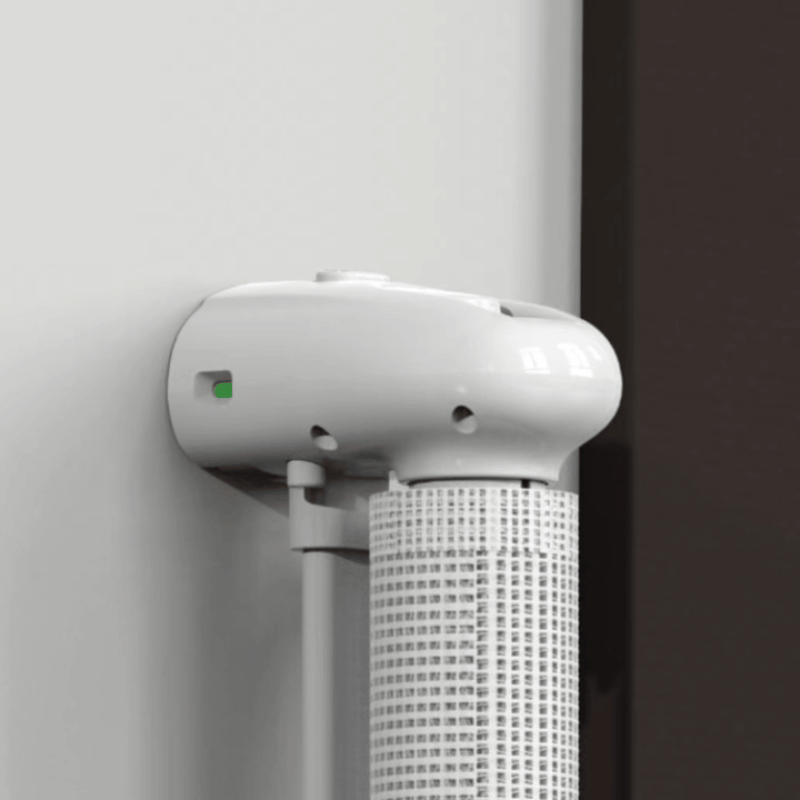

Press the little release button, lift the ①, and unclip it from ② & ③.
Step 3

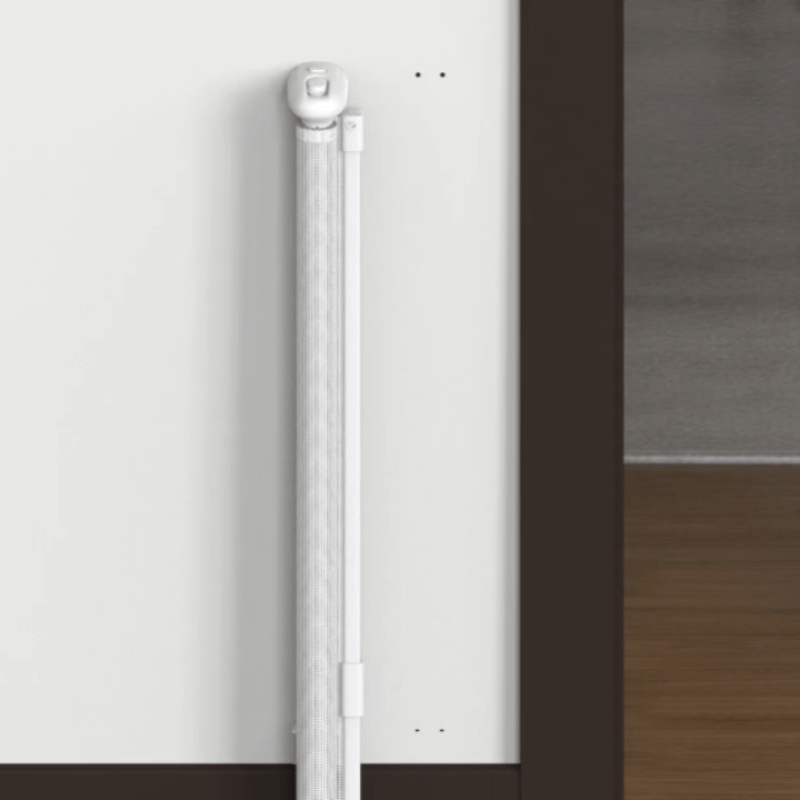

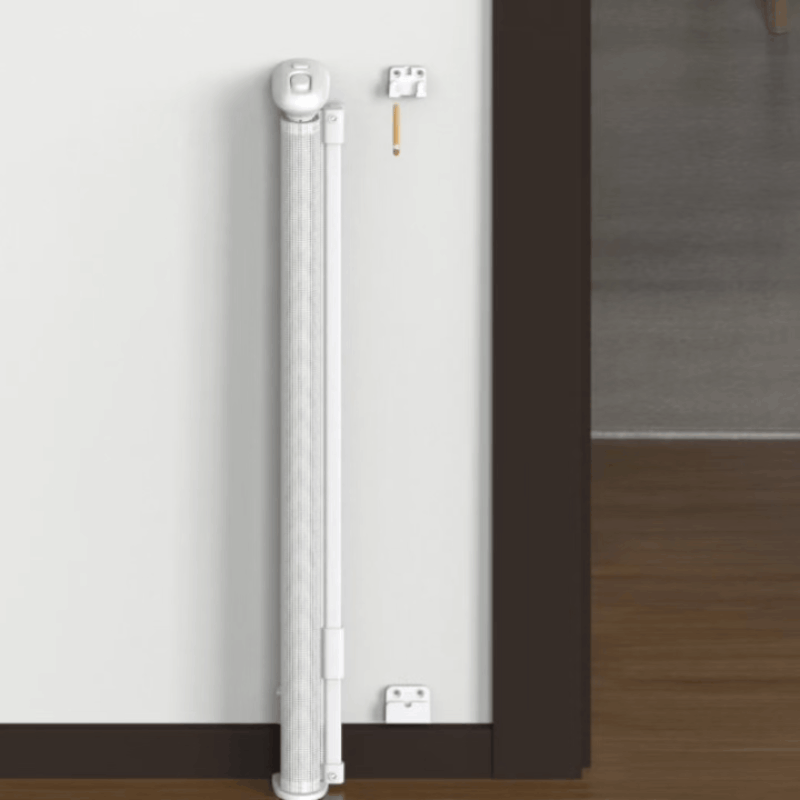

Thread a pencil through each hole in ② & ③ and mark your spots. Remove the brackets, then drill pilot holes at those marks.
Step 4
Push in the wall plugs, re-mount brackets ② & ③, and secure with screws. Snap the ① back onto these brackets.
Step 5

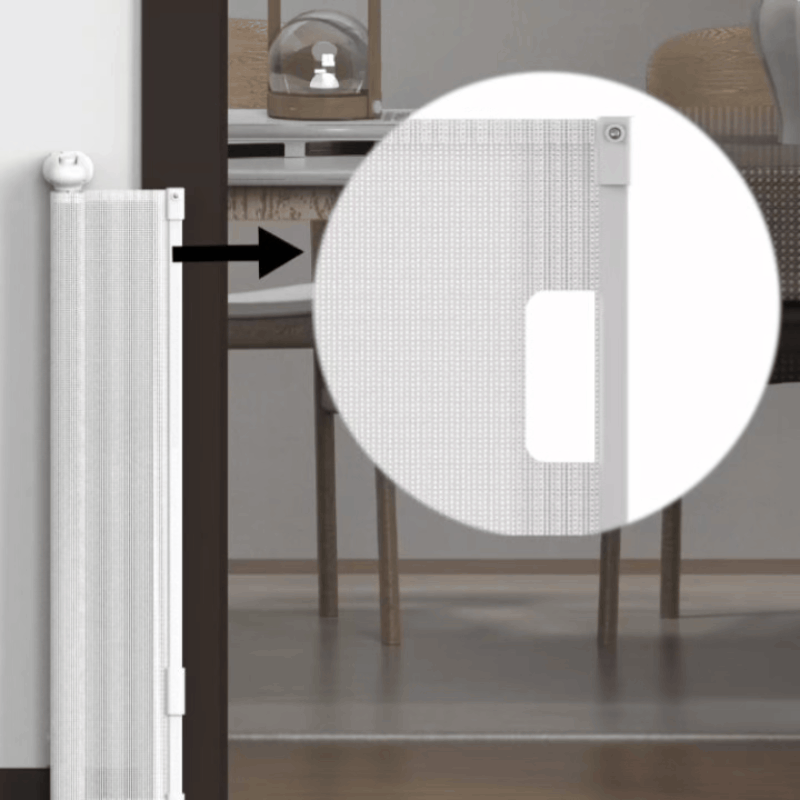

Stretch the mesh across, figure out where brackets ④ & ⑤ should go. Then install ④ & ⑤ exactly like you did on the left.
Step 6

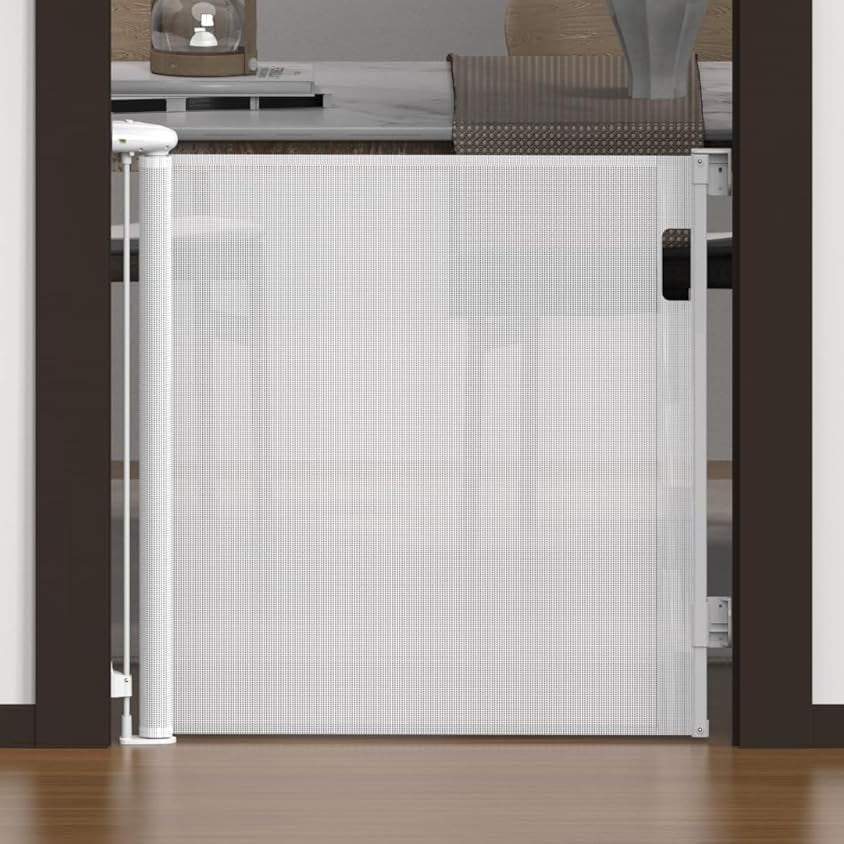

Unfurl the mesh and hook it onto ④ & ⑤—ta-da! Your safety barrier is locked in place. High-five! You’re all set. Enjoy your new adjustable safety gate and keep those little explorers safe and sound.
Locking & Unlocking the Barrier

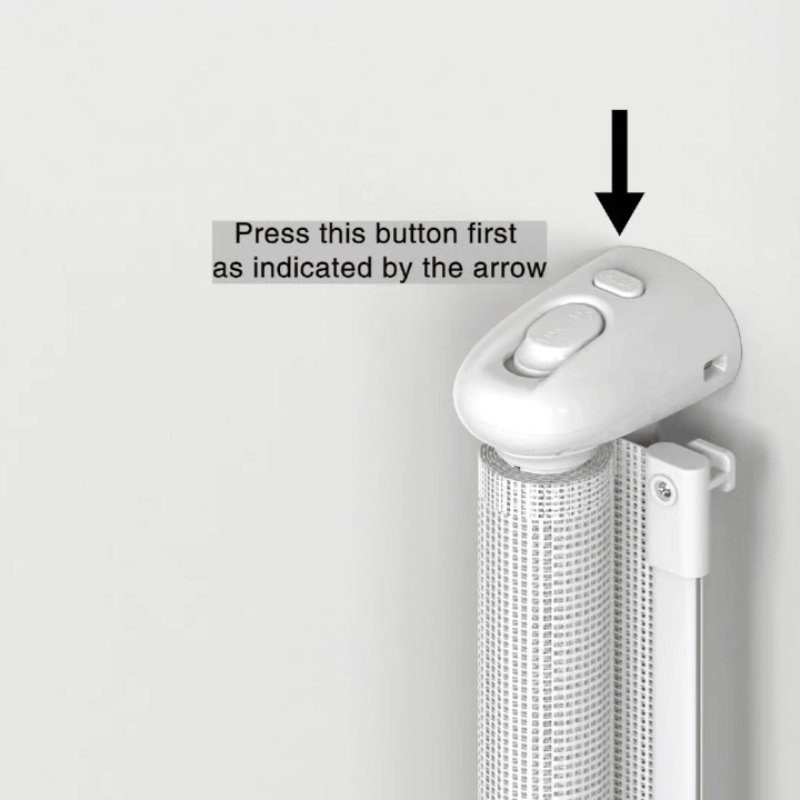

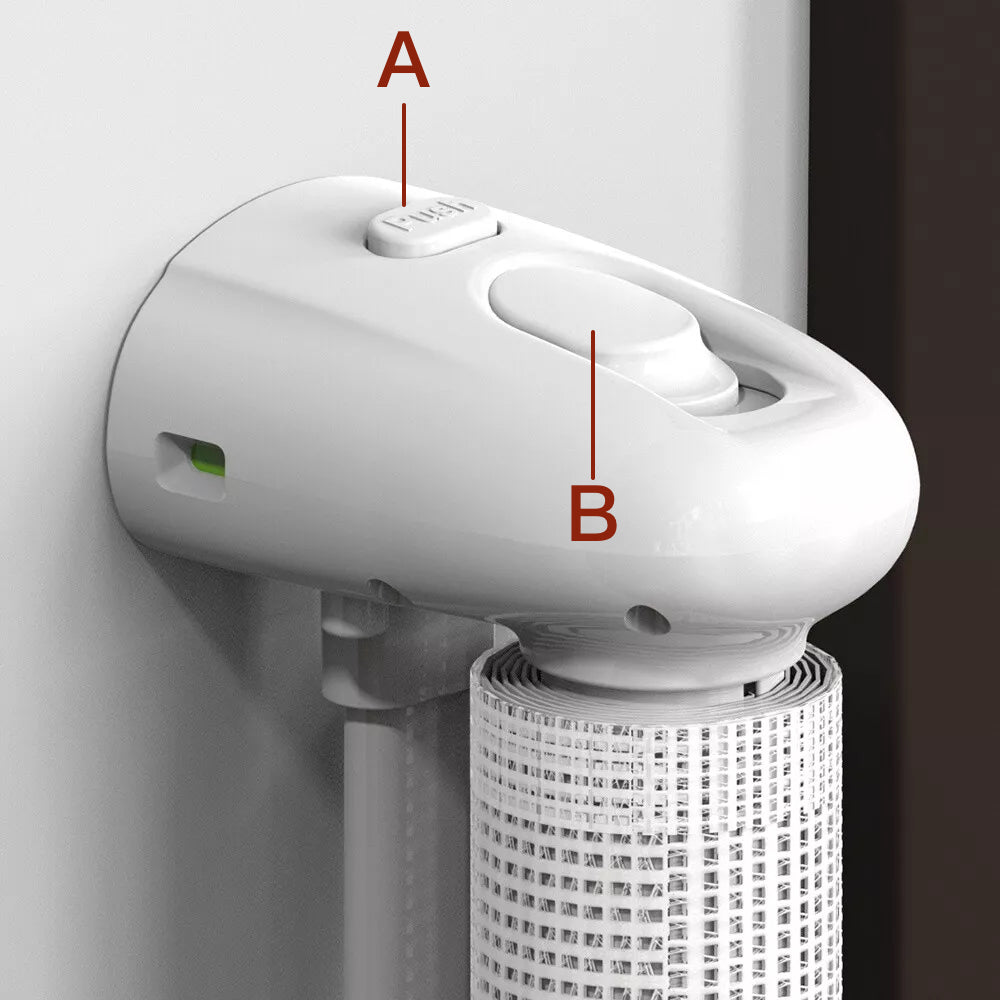

Press Button A and pull down on Slider B, then release. Slider B turns red: unlocked—feel free to stretch or retract the barrier.
To lock it back, press Button A again. Slider B snaps to green: locked—no more accidental adjustments!
Securing the Bottom of the Mesh

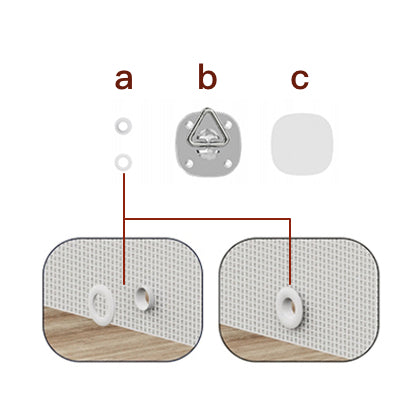

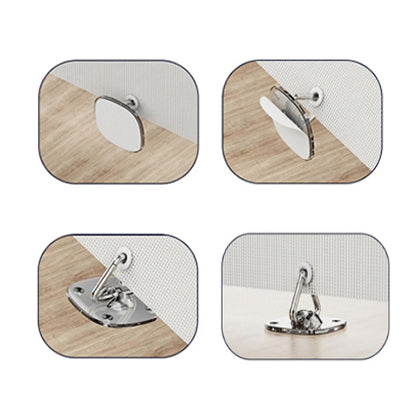

If the mesh sags, snap on the bottom stopper set the ⑨:
a.Contents: small white rings ×2
b.Hook‐mount ×1
c.Adhesive tab ×1
Step 1
Clip the two "a" through the mesh’s bottom holes, sandwiching the fabric.
Step 2
Clean and dry the floor area, peel the backing off the "c", and stick it to the "b". Hook the "c" onto the rings, peel off the tab’s liner, press firmly to the floor.
Step 3
Done.
Great job—your Adjustable Safety Barrier is all set up and ready to go. Now let’s kick off the fun!
